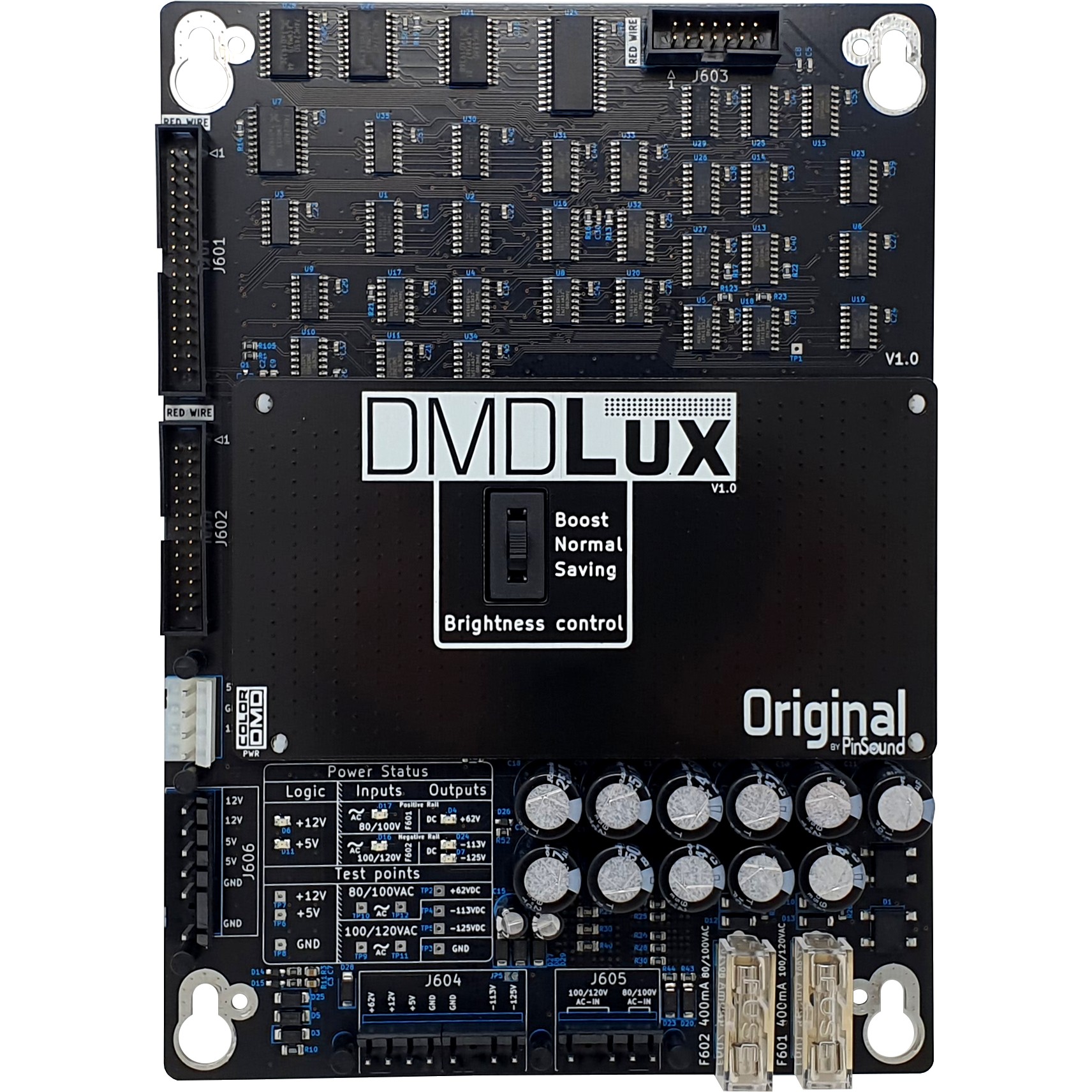

PinSound DMDLux WPC DMD Controller Board

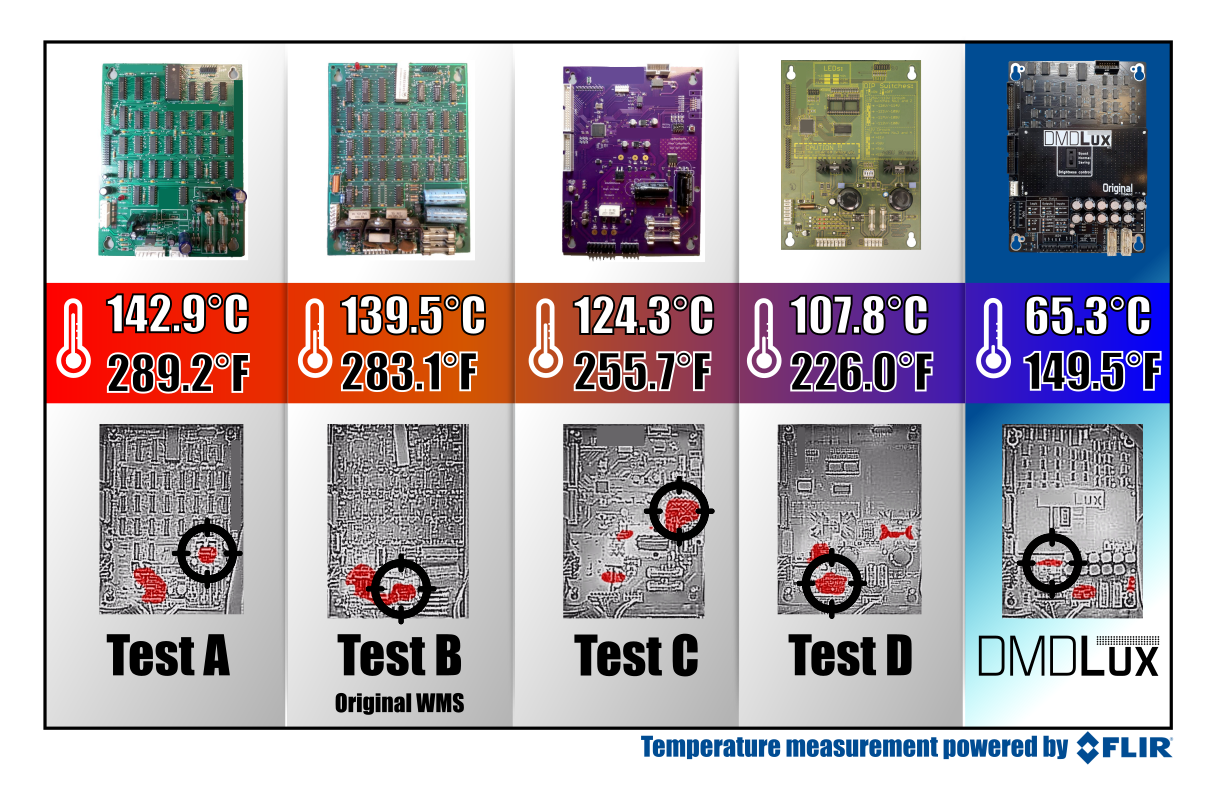

Description DOT Matrix Driver Board For Bally Williams Machines The most reliable DMD controller board DMDLux is a replacement DMD controller board for any Bally Williams WPC pinball machines. It has been carefully designed to be the most reliable and coldest DMD controller board ever created. Bally Williams WPC pinballs: The Getaway: High Speed II, Black Rose, Creature From The Black Lagoon, Doctor Who, Dracula, Fish Tales, Gilligan’s Island, Hurricane, Terminator 2, The Addams Family, The Party Zone, Twilight Zone, White Water Bally Williams WPC DCS pinballs: Corvette, Demolition Man, Dirty Harry, Indiana Jones: The Pinball Adventure, Indianapolis 500, Jack-Bot, Johnny Mnemonic, Judge Dredd, No Fear: Dangerous Sports, Popeye Saves the Earth, Red & Ted’s Road Show, Star Trek: The Next Generation, The Flinstones, The Shadow, Theatre Of Magic, WHO Dunnit, World Cup Soccer Bally Williams WPC 95 pinballs (“No Audio Video setup“, a PinSound PLUS or NEO sound board will be required): Attack From Mars, Cactus Canyon, Cirqus Voltaire, Congo, Junk Yard, Medieval Madness, Monster Bash, NBA Fastbreak, No Good Gofers, Safe Cracker, Scared Stiff, Tales Of The Arabian Nights, The Champion Pub It Works with ColorDMD, Plasma DVD and LED DMD 2 years warranty Every PinSound product is designed to offer a high and long-lasting quality. DMDLux has been designed and manufactured to guarantee a long lasting product. DMDLux is covered by a 2-years warranty and will be replaced if anything happens due to materials or manufacturing defects. Features ; 100% compliant with the original data logic processing 100% identical data logic circuitry and components references Advanced thermal dissipation design Exclusive power supply design CMOS efficient and fast logic gate circuit technology 3 user friendly switch for brightness: saving / normal / boost Mis-insertion pegs and keys (PinSound D-proof connectors) Shrouded data ribbon connector Standard 5x20mm fuses cartridges (400mA fast) Mis-insertion pegs and keys (PinSound D-proof connectors) Shrouded data ribbon connector Standard 5x20mm fuses cartridges (400mA fast) ColorDMD 5V / 12V dedicated power connector Over-voltage protection Over-current protection Short-circuit protection 7 status LED for each voltage rails with minimum voltage detection Test point for each voltage rails Self diagnosis blown fuses: red LED backlit if blown 18 Advanced Voltage Settings 150% factory burn-in test DMDLux is a replacement part for: Bally / Williams A-14039 and 5760-12710-12 Rottendog DMD089 XPin XP-WPCDMD-CTRL Bally / Williams WPC95 audio/video A-20516-50041 (PinSound PLUS or NEO sound board required)
